Victron - Phoenix Inverter 12/3000 120V VE.BUS [PIN123020100]
Victron - Phoenix Inverter 12/3000 120V VE.BUS [PIN123020100]
Couldn't load pickup availability
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering
Developed for professional duty, this range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Parallel and 3-phase operation capability
Up to 6 Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in 3-phase configuration is also possible.

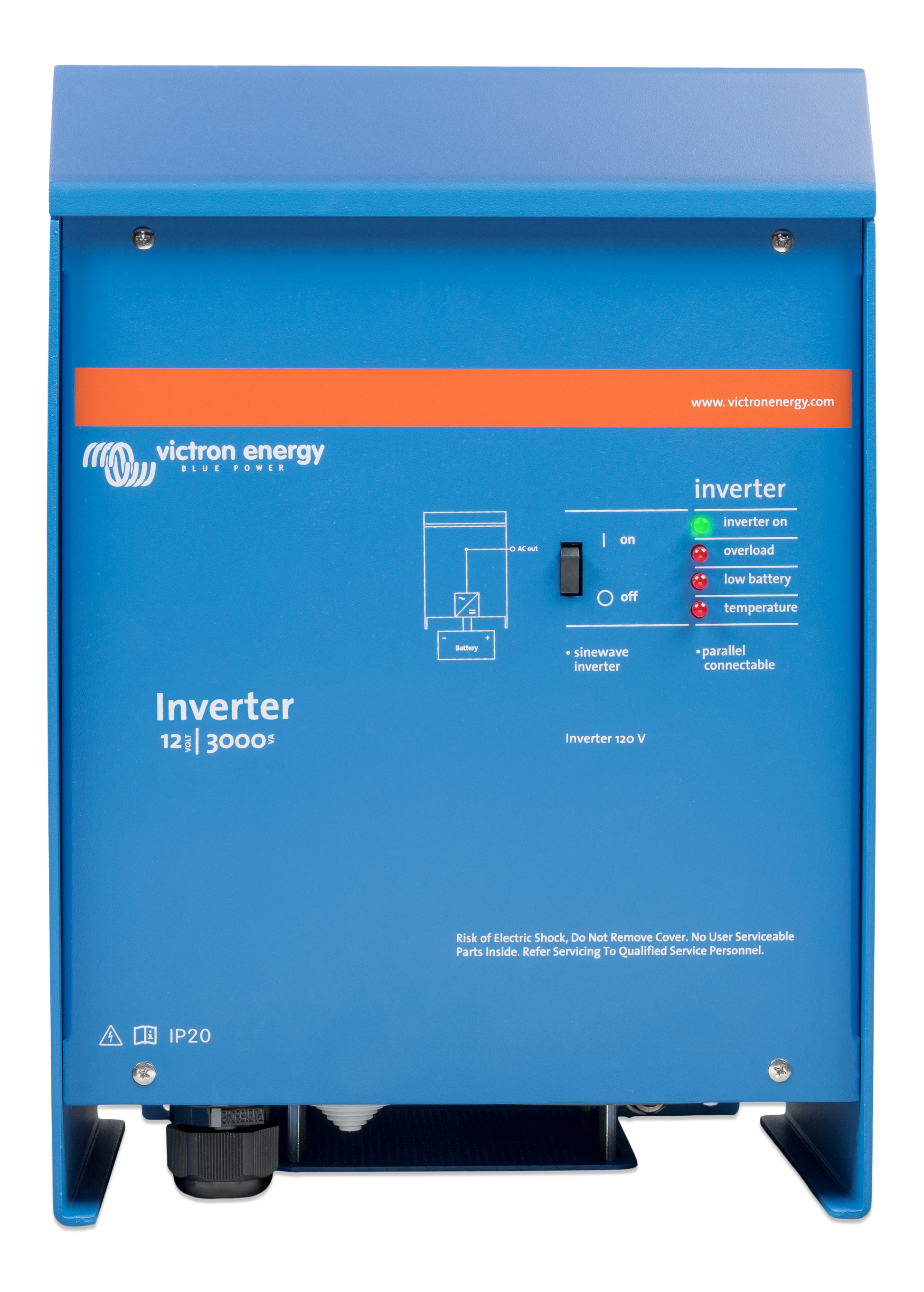

![Victron - Phoenix Inverter 12/3000 120V VE.BUS [PIN123020100]](http://raynesworld.com/cdn/shop/files/PIN123020100_Inverter_2012-3000_20120V_20VE_20BUS_20_front.png?v=1787540088&width=1445)
How to Find the Amps you Need!
AMP= Watts / Volts x 1.25
Example: AMPS = 1000 Watts / 12 Volts x 1.25 = 104.1 AMPS (Round up to 110 or 120 Amp)
Most of the time you want 25% more than what is the actual requirement. If the AMPs aren't available as the exact Amperage, then round up to the next available.
