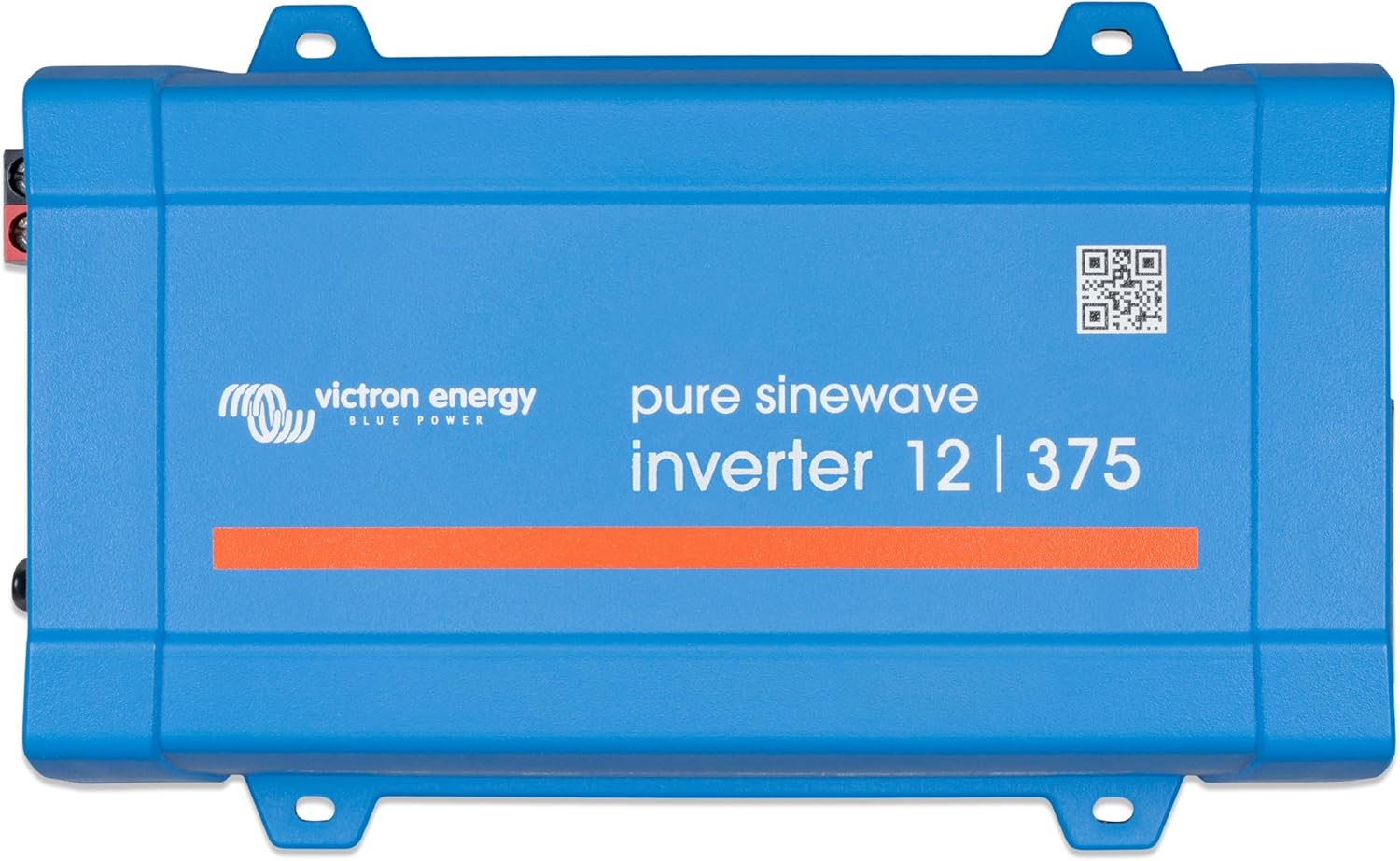

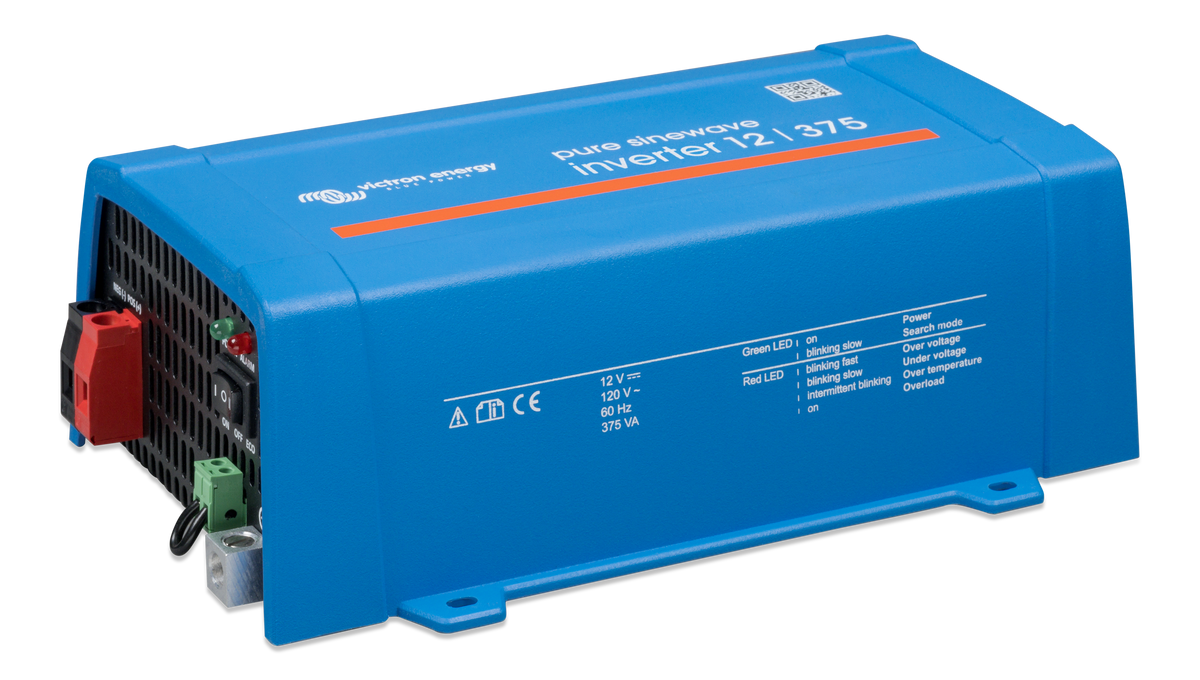

Victron - Phoenix Inverter 12/375 120V VE.Direct NEMA GFCI (UL 458) [PIN123750510]

The Victron Phoenix VE.Direct inverter series delivers reliable, pure sine wave AC power from 12V, 24V, or 48V battery systems—ideal for marine, RV, and off-grid applications. Available in power ratings from 250VA to 1600VA, these inverters offer exceptional efficiency, low standby consumption, and full protection for your sensitive electronics.

Key Features

• Pure sine wave output – Safely powers sensitive electronics

• VE.Direct communication – Monitor and configure via USB (separate VE.Direct to USB cable required) or Bluetooth with the VictronConnect app (separate VE.Direct Smart Bluetooth Dongle required)

• ECO mode – Minimizes standby consumption to save battery life

• High surge capacity – Starts inductive loads like compressors and pumps

• Full electronic protection – Includes overload, short circuit, and temperature safeguards

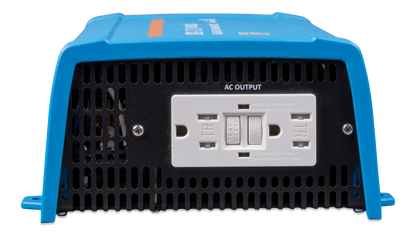

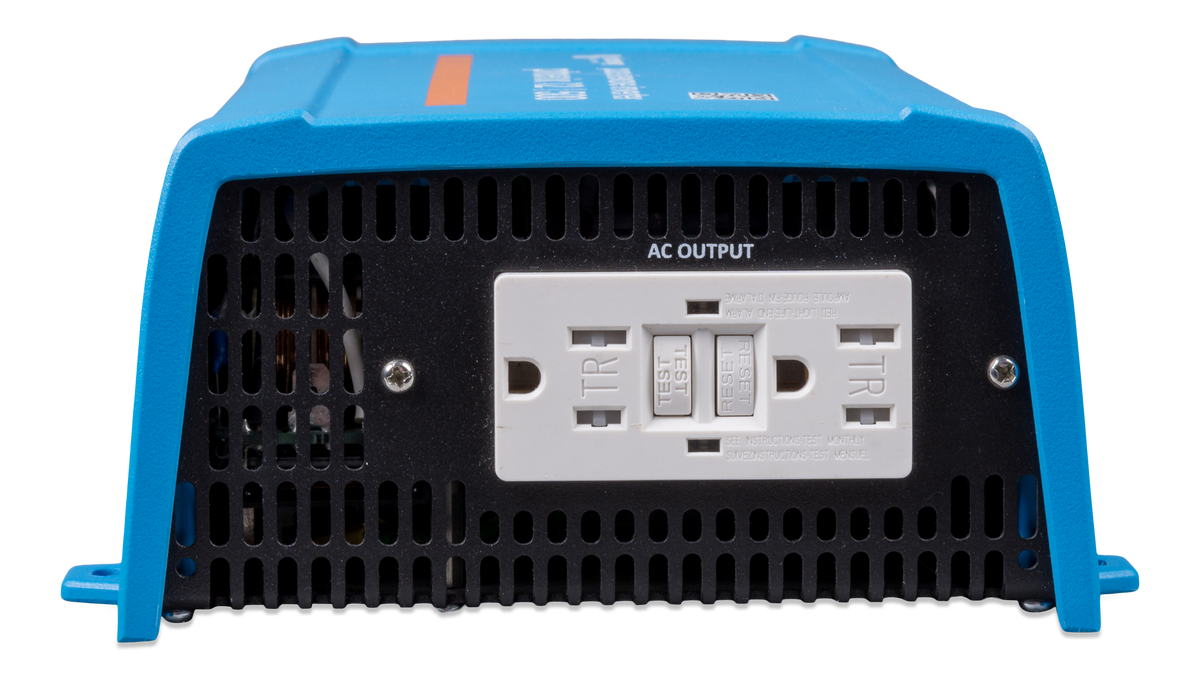

• NEMA 5-15R or GFCI outlet – GFCI models are UL 458 listed for added safety

Model Specifications

Technical Details

• Input voltages: 12V, 24V, or 48V (depending on model)

• Output voltage: 120V ±3%, 60Hz ±0.1% (adjustable)

• No-load consumption: 4.2–10W (standard) / under 3W (ECO mode)

• Operating temperature: -40°C to +65°C (fan-assisted)

• Ingress protection: IP21

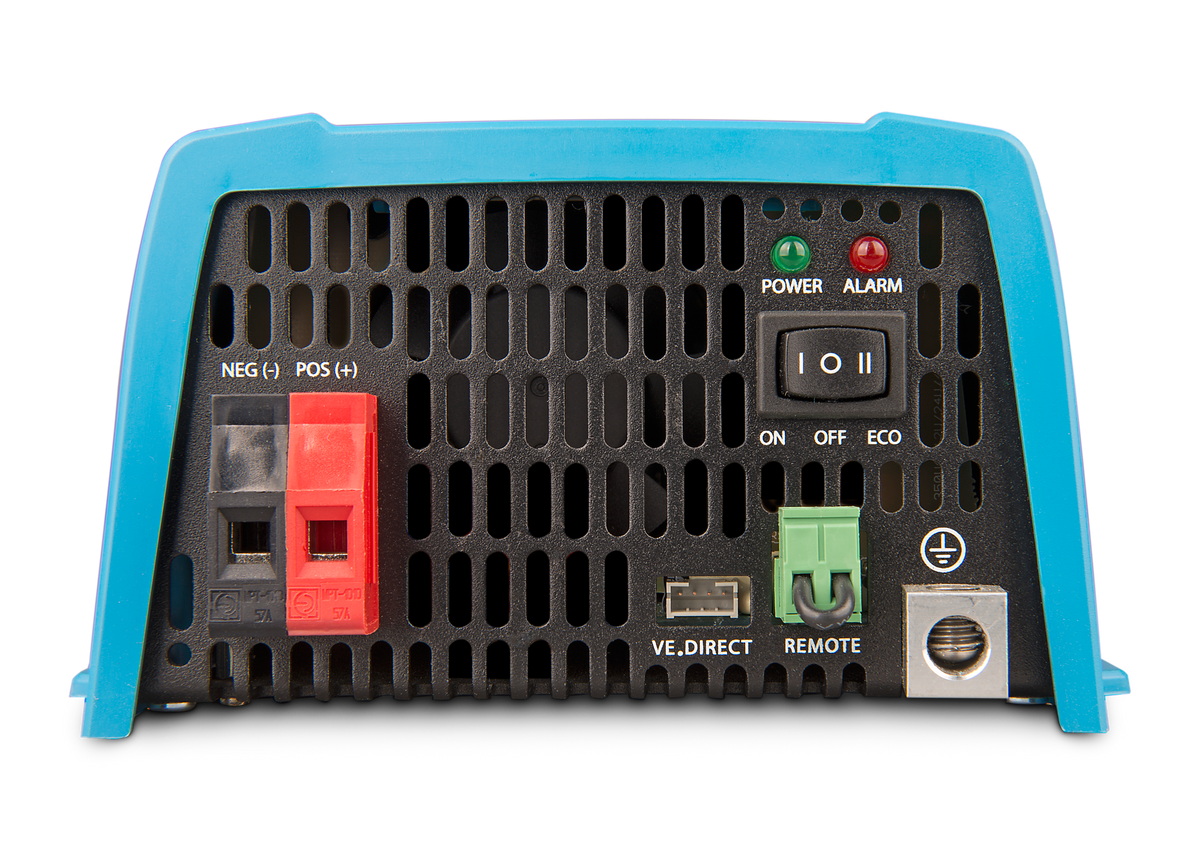

• Remote on/off; screw-terminal DC connection; pair with the Victron Filax 2 for automatic transfer switching

Ideal For

• Sailboats and motorboats

• Campervans and RV systems

• Off-grid cabins and backup AC setups

Product Documentation
